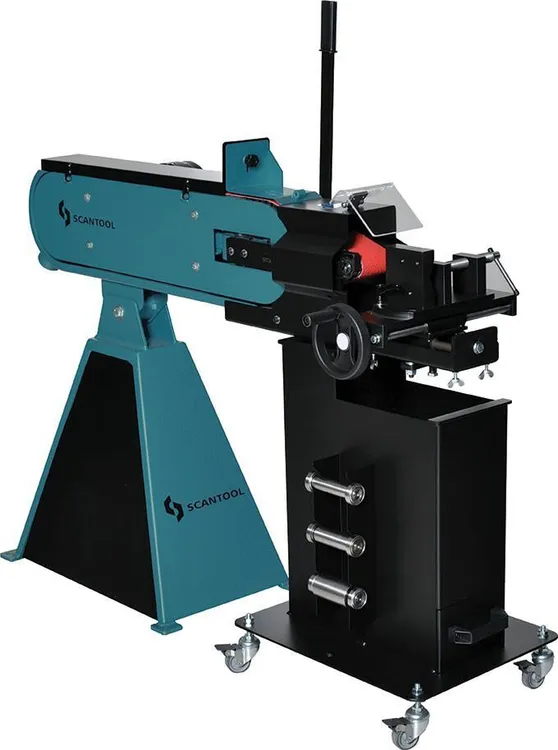

SCANTOOL 75RB Grinder with Notcher Attachment

Description

Voltages Available (speciry when ordering):
Part# 430232147 – 220V 3 phase
Part# 430232146 – 480V 3 phase

Every tube & pipe grinder-notcher features the following:

● Remove material rapidly without vibration
● Contact wheel provides safe consistent grinding area
● Tool free belt change allows operator to quickly match abrasive to the application
● Working height adjusts to accommodate operator and material
● Top grinding table supported by graphite pad increases versatility
● Tool free adjustment of belt tracking
● Adjustable tool rest and eye shield
● Emergency stop
● Five Year warranty on motor
● Detachable spark arrestor for easy cleaning
● Additional belts may be required to attain final finish when using notcher attachment

Scantool 75RB Notcher Key Specifications:

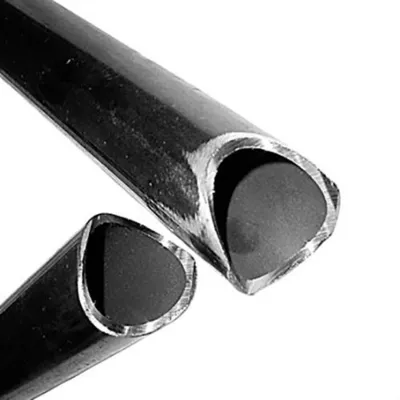

● Notch angles up to 60°
● Capacity 3/4″ – 2″ Tube
● Capacity 3/4″ – 1-1/2″ Pipe
● 3″ x 89″ Grinding belt
● 24″ Grinding table
● 8″ x 3″ Contact wheel
● 4.1 HP Motor
● 3350 RPM
