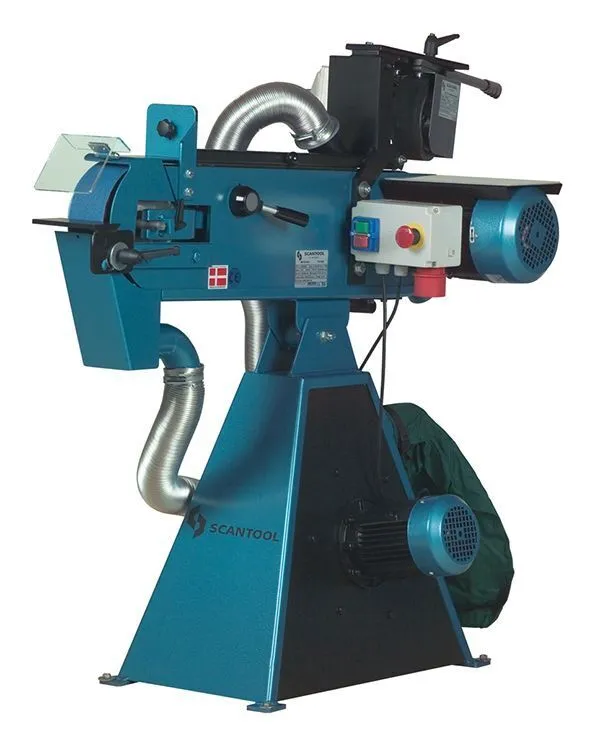

SCANTOOL 75CGX DRY CENTERLESS GRINDER WITH DUST EXTRACTION - 220V 3 phase

Description

All centerless grinders feature the following:

● Remove material rapidly without vibration
● Contact wheel provides safe consistent grinding area
● Tool free belt change allows operator to quickly match abrasive to the application
● Working height adjusts to accommodate operator and material
● Top grinding table supported by graphite pad increases versatility
● Tool free adjustment of belt tracking
● Adjustable tool rest and eye shield
● Emergency stop
● Five Year warranty on motor
● Centerless attachment can be mounted on all belt grinders with a 3″ x 79″ grinding belt
● Grinds and polishes all pipes or tubes with diameters between 7/8″ – 3″ Ø
● Detachable spark arrestor for easy cleaning
● Unique setup allows machine to remain a belt grinder while centerless grinding attachment is mounted
● Contact wheel and flat grinding surface on top available even with attachment on machine
● Multiple grit belts may be needed to attain final finish required

Scantool 75CGX Key Specifications:

● Grinds and polishes tube and pipe 7/8″ – 3″ Ø
● Smaller diameters 1/4″ – 7/8″ Ø requires Teflon grinding support accessory
● 3″ x 79″ Grinding belt
● 24″ Grinding table
● 8″ x 3″ Contact wheel
● 3350 RPM
● Built-in dust extraction
