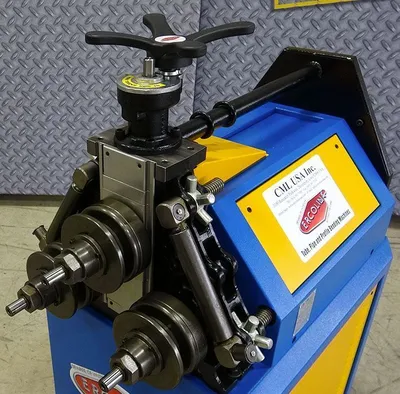

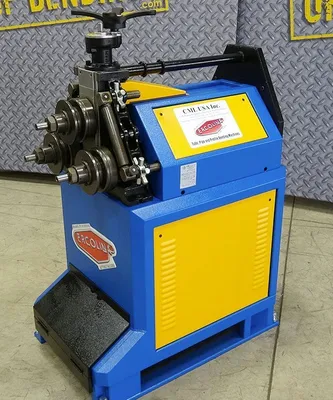

CE40MR3 Manual Angle Roll - 220V or 480V 3ph

Description

220V or 480V 3 Phase

2" Schedule 40 Pipe or 2-1/2" (.125 wall) Tube Capacity

Manual Down Feed

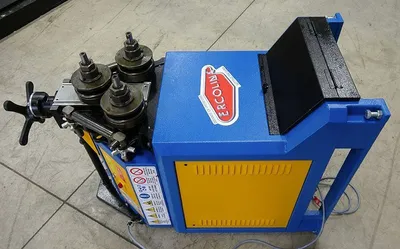

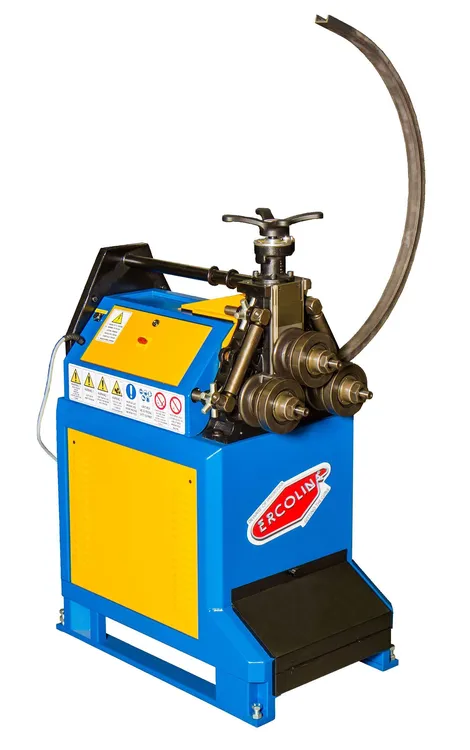

Ercolina’s CE40 angle roll models are available either with manual or hydraulic center roll positioning. Vertical or horizontal operating position available.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● 40mm roll shaft diameter
● Maximum pipe capacity 2″ Sch. 40
● Maximum angle capacity 2″ x 2″ x 1/4″
● Bending speeds 20% faster than competitive machines

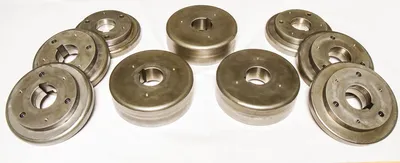

● Universal tooling set included with each machine – 6-5/8″ OD
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Roll shafts supported with conical steel bearings on each side of A Frame
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models

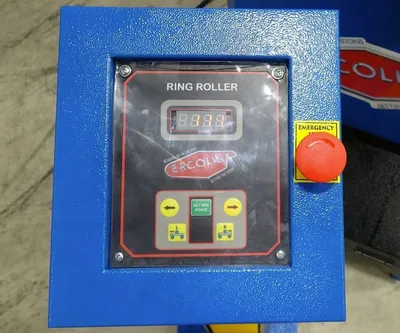

● Touchpad control with digital readout of center roll positioning on manual model

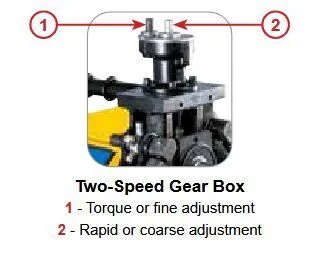

● 2-speed gear box with torque multiplier for positioning center roll

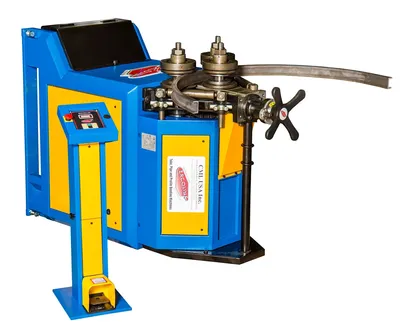

● Remote pendent with low voltage controls and foot pedal switch
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Inline direct drive roll shaft system 3-roll driven
● Optional Anti-twist correction system for angle iron “Leg In” applications
● All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
