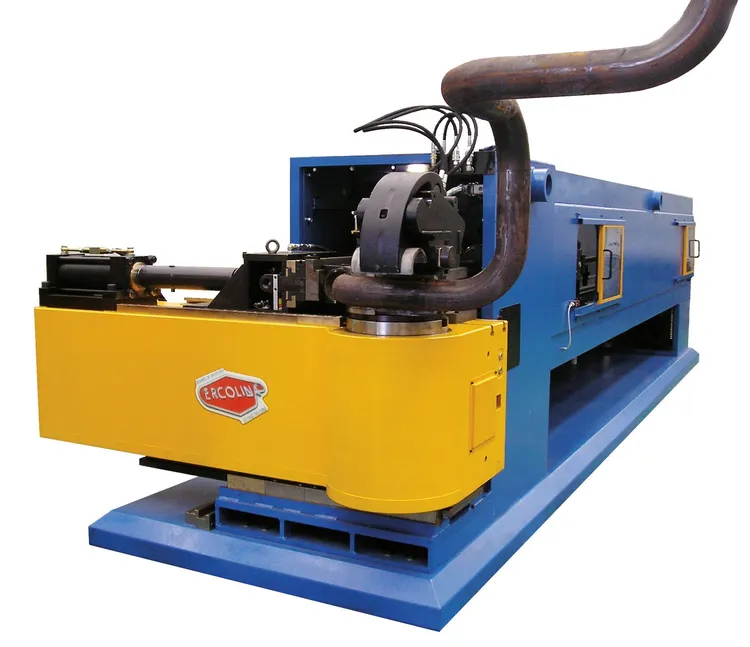

Ercolina Giga Bender GB130 7 Axis CNC Mandrel

Description

Capacity to 5″ Tube - 480V Three Phase

Ercolina’s GB130 CNC mandrel bender is ideal for industrial bending of tube, pipe, square and rectangular profiles to a center line radius as tight as 1.5 x diameter. Large radii tooling available to 18″ CLR.

Affordable tube benders and fabricating machines by Ercolina are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 5″ (.196 wall)
● Stainless tube capacity 5″ (.150 wall)
● Square tube capacity 4″ (.160 wall)
● Minimum tube capacity 1-1/2″
● Maximum pipe capacity 4″ Sch. 40
● Interactive PLC touch screen offers easy access to auto and manual operating modes, system diagnostics and multiple language capability
● Programmable bend angles with independent material springback setting for each bend
● Programmable auto mandrel positioning allows operator to optimize extraction for improved bend quality
● Programmable clamping, pressure die and boost movements with manual override
● USB for unlimited program memory storage and communication
● Precision encoders on each axis
● Touch screen displays absolute (ABS) or incremental (INC) positioning with inch or metric readout
● Programmable tail stock interference zone monitors position and eliminates workhead collision
● Standard hydraulic ports accept Ercolina’s patented (KST) clam shell clamp system
● Accepts YBC and XYZ input values
● Y – Feeding Hydraulic
● B – Feeding Hydraulic
● C – Bending Hydraulic CNC
