TB60 Top Bender with 2-1/2" Tube or 2" Pipe Capacity, 480 Volt

Description

480 Volt 3 Phase

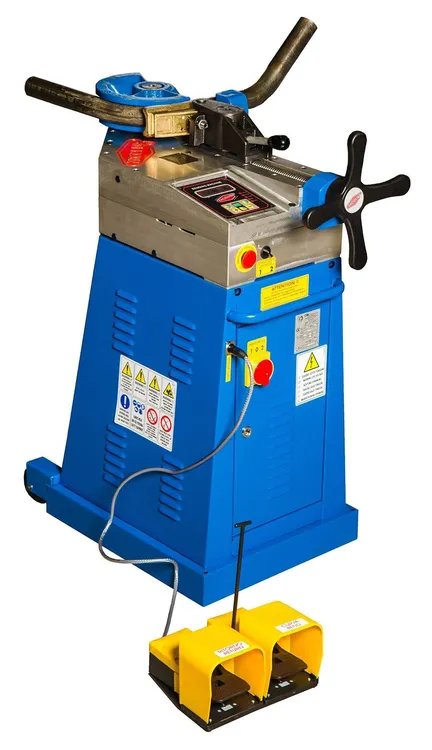

Ercolina TB60 Super Bender is ideal for producing consistent quality bends in large diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

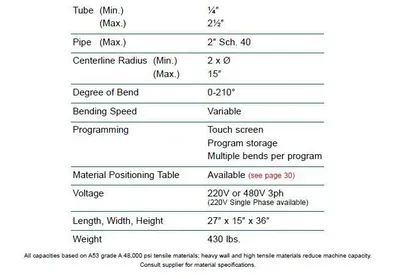

● Mild steel tube capacity 2-1/2″
● Pipe capacity 2″ Sch. 40
● Square tube capacity 2″
● Maximum CLR 15″
● Bend to CLR as small as 2D

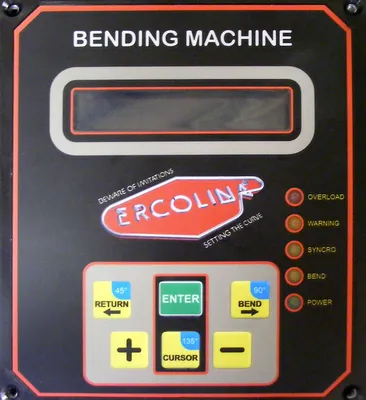

● Touch screen programming of bend angle with system diagnostics in multiple languages

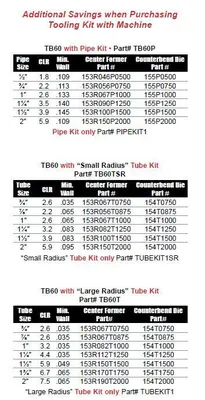

● Quick-change tooling system with multiple radii available
● Digital display of bend angle
● Material springback compensation
● Foot pedal for hands-free operation
● Counterbending die positioning monitored electronically for accuracy and repeatability
● Accepts Ercolina’s A40-P two axis positioning table for multiple and sequential bends
● No hydraulic components
● All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
