TB180 Top Bender with 6" Tube Capacity - 440-480 Volt

Description

440-480 Volt Three Phase

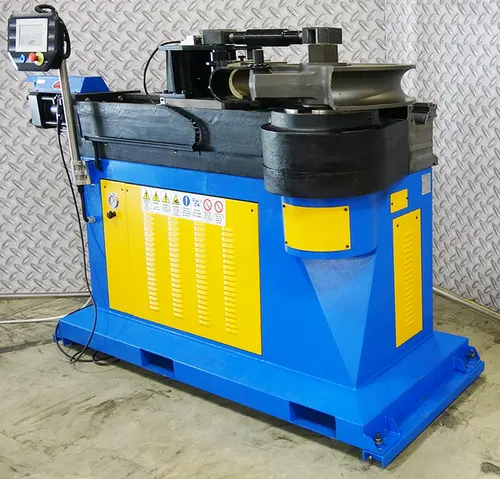

Ercolina TB180 Top Bender is ideal for producing consistent quality bends in larger diameter pipe, tubes, squares, rectangular, solids and other profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

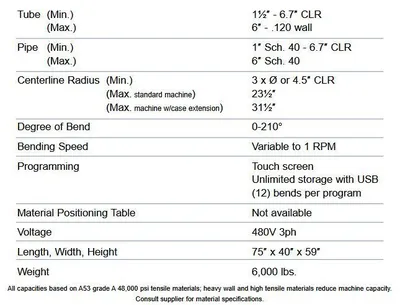

● Tube capacity 6″ .120 wall
● Pipe capacity 6″ Sch. 40
● Square tube capacity 4″
● Maximum CLR (standard machine) 23-1/2″
● Maximum CLR (machine with case extension) 31-1/2″
● Bend to CLR as small as 3D or 4.5 CLR
● Touch screen programming of bend angle with system diagnostics in multiple languages
● Quick-change tooling system
● Digital display of bend angle
● Material springback compensation
● Hand-held remote control of bend, return and emergency stop functions
● Counterbending die positioning monitored electronically for accuracy and repeatability
● Heavy-duty steel gear case
● Optional hydraulic clamping system available

All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
