Super Brown 350 AP Semiautomatic Circular Cold Saw with Feeder & Pneumatic Vise - 240V

Description

240V 3 Phase (480V Available - specify when ordering) Speed: 15 / 90 rpm

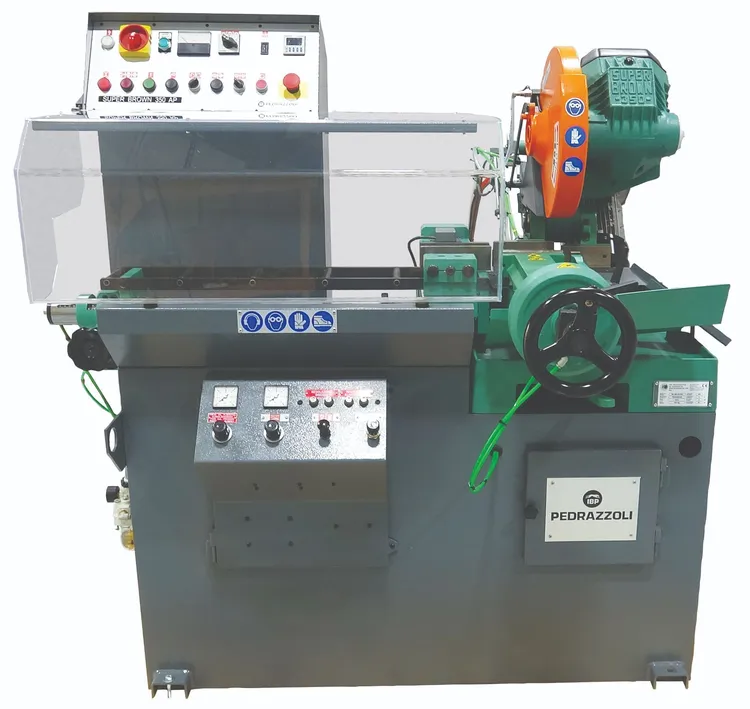

Pedrazzoli’s Super Brown circular cold saw with semiautomatic step feeder. Ideal for any fabrication shop to improve production and reduce labor on multiple cuts.

The feed system is capable of executing up to nine repeating steps, achieving a total movement of 18 feet. A programmable piece counter comes standard. A transmission system featuring pulleys extends the RPM range, while a worm drive gearbox with a clutch mechanism prevents blade breakage during the cutting cycle. The machine’s proven design ensures a smooth sawing operation and unparalleled reliability.

● Saw head swivels 45 degrees left for mitering
● Variable speed blade adjusts between 15-90 rpm
● Accepts saw blades to 350 mm with blade cleaning roller inside cover
● Coolant tank with electric pump for effective cooling
● Complete blade guard coverage with rapid blade system
● Pneumatic vise available with removable anti burr device
● Head tilt pivots on self-lubricating bearings
● Gear reverser
● Electric pump supplies lubrication to key components constantly
● Anti burr group grips part throughout cutting cycle minimize burring
● Easy access to emergency stop with lockable switch on control
● Capacity of feeder collet to six inches
● Minimum final length six inches
● Metal base welded for rigid reinforcement
