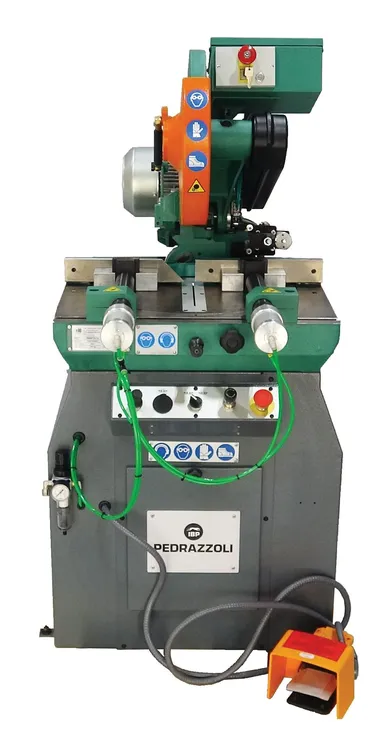

Perris 350SA Semiautomatic High-Speed Aluminum Cutting Circular Saw with Pneumatic Vise - 240V

Description

240V 3 Phase (480V Available - specify when ordering) Speed: 2400 or 3400 rpm

Pedrazzoli’s semiautomatic high-speed aluminum cutting circular saw improves productivity and cut quality while extending blade life. High-speed carbide tipped blade for accurate sawing of nonferrous tube and other light alloys. The saw head’s downward feed and return motions are customizable through pneumatic controls equipped with a brake for speed adjustment. Two pneumatic vises offer both lengthwise and lateral adjustments, ensuring steadfast material support throughout the cut and yielding immaculate, burr-free parts.

● Saw head swivels 45 degrees left, 45 degrees right and 45 degrees off vertical
● Two speeds of blade rotation obtainable by inverting pulleys
● Accepts saw blades to 350 mm
● Coolant tank with easy access for cleaning
● Complete blade guard coverage with rapid blade change system
● Pneumatic vise available with removable anti burr device
● Drive pedal for semiautomatic cycle control
● Head tilt pivots on self-lubricating bearings
● Electric pump supplies lubrication to key components constantly
● Easy access to emergency stop button
● Control with lockout switch
● Stock stop with micrometer adjustment for repetitive parts
● Metal base welded for rigid reinforcement
