HB60 Rotary Draw Tube and Pipe Bender - 120V 1ph

Description

120 Volt Single Phase (480V 3ph Available - specify when ordering)

Ercolina’s HB60 Hot Shot Bender is ideal for producing tight radius consistent quality bends in pipe, tube and solids. Note: Bending square tube requires tooling modified for crush style bends for easy removal after the bend.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● Mild steel tube capacity 2″
● Pipe capacity 1-1/2″ Sch. 40
● Square tube capacity – consult factory
● Maximum CLR 10-1/2″
● Bend to CLR as small as 2D
● Hybrid hydraulic gear driven rotary draw bend action
● Quickly bend to 180° in seconds with patented ergonomic function – no ratcheting or repositioning

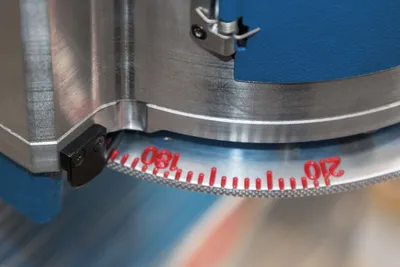

● Easy set and view angle degree wheel with auto stop for repeatable bends
● Draws tube from one direction for easier sequential bending
● Swing away counter bending die vise allows easy material on and off maintaining position without secondary locking
● Patented quick change system accepts all Ercolina tooling
● Precision one-piece cast steel tooling available in multiple centerline radii accommodates a variety of materials and wall thicknesses
● One piece solid bronze counter bend die for longer tool life and rigid support throughout the bend
● Machine case engineered for strength with high section modulus design
● Bend head swivels to accommodate any size shop space
● Single or three phase electric power available

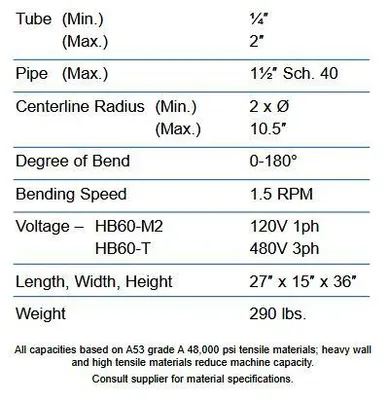

All capacities based on A53 grade A 48,000 psi tensile materials; heavy wall and high tensile materials reduce machine capacity. Consult supplier for material specifications.
