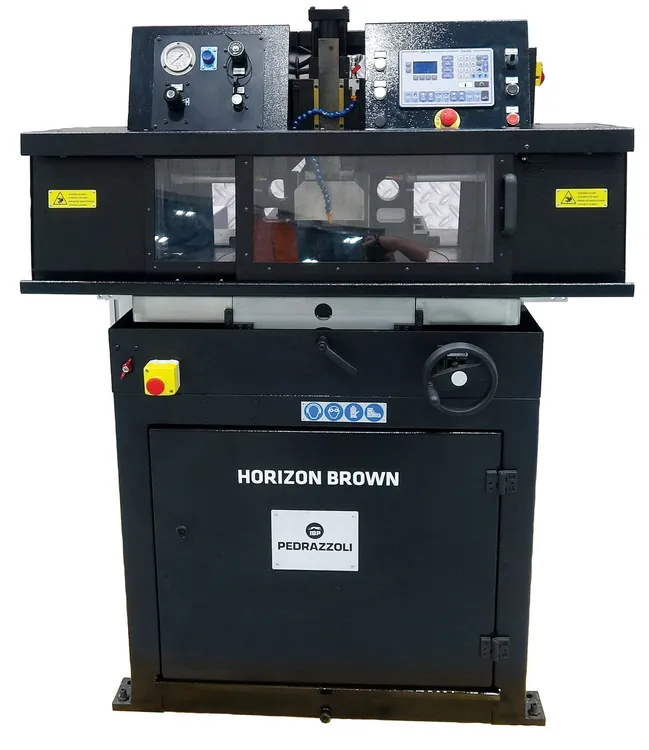

HB450SA Horizon Brown Semiautomatic Circular Upcut Saw - 480V

Description

480V 3 Phase - Speed: 24-144 rpm

Pedrazzoli Semiautomatic Circular Upcut Saw with hydraulically fed upcut blade movement designed to quickly and accurately produce straight and miter cuts in a wide range of profile and solid materials. A testament to engineering excellence, the HB450 semiautomatic machine accommodates circular saw blades up to an impressive 450 mm, offering a 6-inch round profile capacity at 90 degrees. The blade is powered by precision-ground and hardened helical gears, guaranteeing a uniform cutting speed for a wide array of tube and solid materials. Adapting to material specifics, the blade’s rotational speed is seamlessly adjustable through the inverter, effortlessly controlled from the machine’s panel.

- Table adjusts 0-170 degrees with three stops and locks
- Heavy-duty precision gear box with variable blade RPM through inverter drive
- Self balancing valve for smooth forward movement of blade
- Digital adjustment of blade stroke
- RPM 13 to 77 or 24-144 depending on model
- Accepts saw blades to 450 mm
- Coolant system to extend blade life
- Saw angle adjusts inside of table base via hand wheel for miter cutting
- Heavy-duty metal base welded for rigid reinforcement
