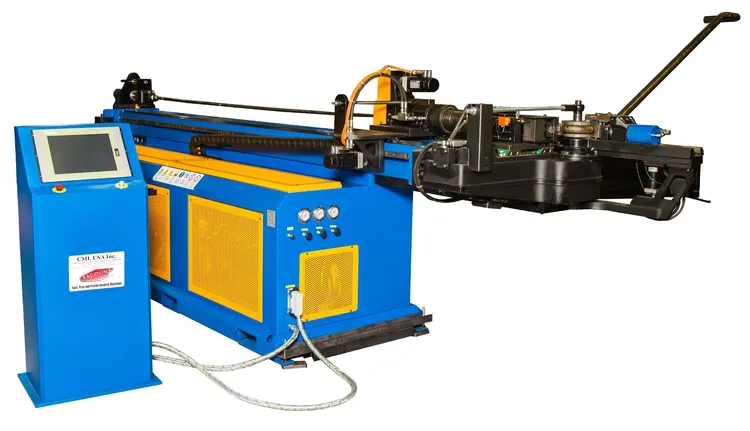

Erco Bender 65 Mandrel System - 480 Volt 3 Phase

Description

480 Volt 3 Phase

Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass with Ercolina’s Erco Bender EB65CNC3V1 Mandrel Bender. Ercolina’s model EB65 – 3 Axis mandrel bender has an extended bending head capable of bending complex shapes and profiles.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

• Mild steel tube capacity 2-1/2″ (.083 wall)
• Stainless tube capacity 2″ (.065 wall)
• Maximum pipe capacity 1-1/2″ Sch. 40
• Automatic or manual bend sequencing
• Independent pressure and clamp die adjustment
• Programmable carriage movement for tight radii
• Standard right hand bending direction
• Interactive touch screen with auto and manual operating modes, system diagnostics and multiple language capability
• Programmable material springback settings for each bend angle
• USB for unlimited program memory storage
• Optional file importation of IGES and DXF files – consult Ercolina for details and pricing
• Accepts YBC and XYZ input values
• Y – Feeding Electric Servo
• B – Rotation Electric Servo
• C – Bending Hydraulic CNC
