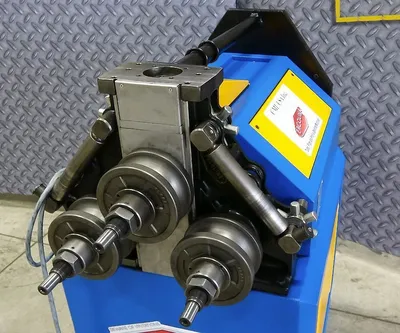

CE40H3 Hydraulic Angle Roll - 220V or 480V 3ph

Description

208-480 Volt 3 Phase

2" Pipe or 2-1/2" Tube Capacity

Hydraulic Down Feed

Ercolina’s CE40 angle roll models are available either with manual or hydraulic center roll positioning. Vertical or horizontal operating position available.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● 40mm roll shaft diameter
● Maximum pipe capacity 2″ Sch. 40
● Maximum angle capacity 2″ x 2″ x 1/4″
● Bending speeds 20% faster than competitive machines

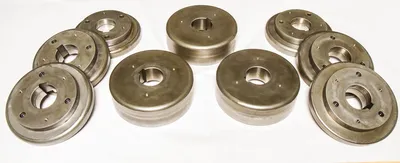

● Universal tooling set included with each machine – 6-5/8″ OD
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Roll shafts supported with conical steel bearings on each side of A Frame
● Heavy duty structure and rigid components for high section modulus ratings
● Vertical or horizontal operating position
● Reinforced engineered mainframe design proven to outperform competitive models
● Inline direct drive roll shaft system 3-roll driven
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Touchpad controls with digital center roll positioning

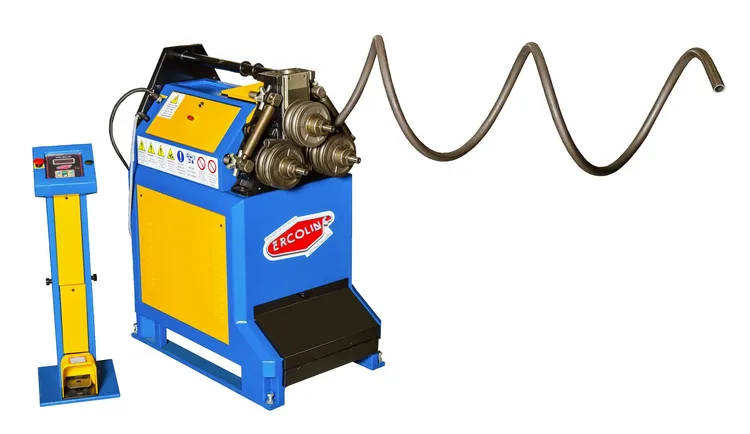

● Control tower with low voltage controls and foot pedal
● Machine with memory storage has eight (8) individual programs and unlimited passes
● Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation
● Optional anti-twist correction system required for angle iron “Leg In” applications
