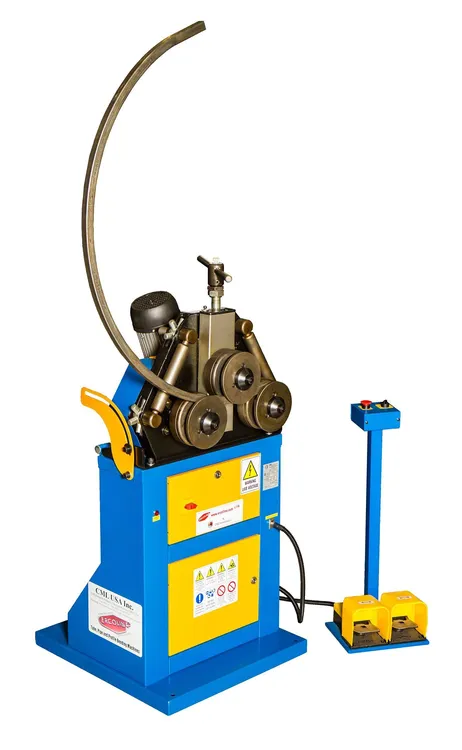

CE35 Manual Angle Roll - 1½″ Sch. 40 Pipe and angle iron Capacity - 220V

Description

220 Volt Single Phase

Manual down feed of center roll, two rolls driven

Ercolina’s CE35 angle roll models offer convenient single phase power and manual center roll positioning. Vertical or horizontal operating position available.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

● 40mm roll shaft diameter
● Maximum pipe capacity 1-1/2″ Sch. 40
● Maximum angle capacity to 1-1/2″ x 1-1/2″ x 1/4″
● Bending speeds 20% faster than competitive machines
● Universal tooling set included with each machine – 6-5/8″ OD
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Roll shafts supported with conical steel bearings on each side of A Frame
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models
● Heavy duty gearbox drives lower roll shafts
● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Control tower with foot pedal operation of roll movement
● Inline direct drive roll shaft system
● Optional Anti-twist correction system for angle iron “Leg In” applications

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity
