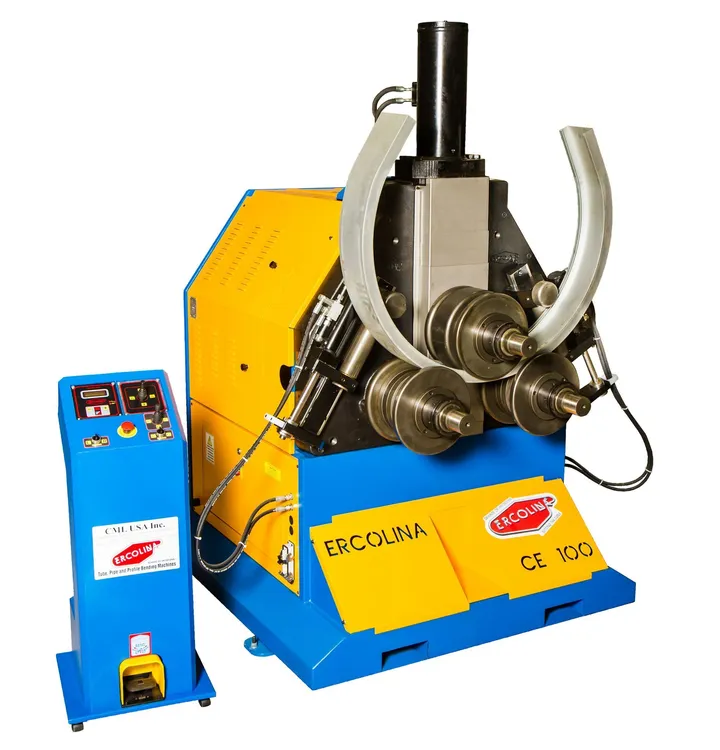

CE100H3RLI Angle Roll Machine - 220V

Description

220-440 Volt 3 Phase (440-480V Available)

Ercolina’s CE100H3RLI Angle Roll – Section Bender has a heavy-duty structure with rigid components for high section modulus ratings.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

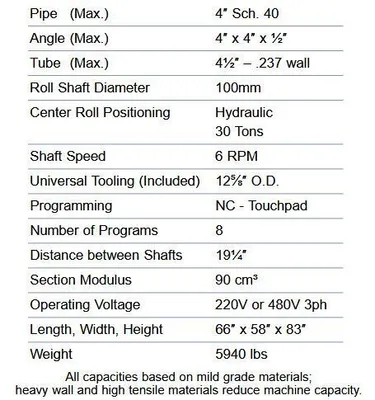

● 100mm roll shaft diameter
● Maximum tube capacity 4-1/2"
● Maximum pipe capacity 4″ Sch. 40
● Maximum angle capacity 4″ x 4″ x 1/2″
● Bending speeds 20% faster than competitive machines
● Hydraulic Down Feed
● Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
● Heavy duty structure and rigid components for high section modulus ratings
● Reinforced engineered mainframe design proven to outperform competitive models
● Three axis hydraulic twist system for angle iron “Leg-in” applications
● Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation

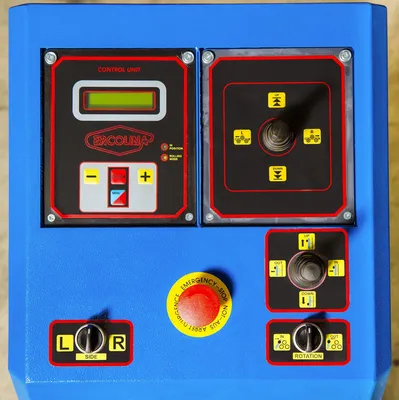

● Programmable touch pad controls with digital center roll positioning display
● Memory storage with eight (8) individual programs and unlimited passes
● Remote control pendent with low voltage controls and foot pedal switch

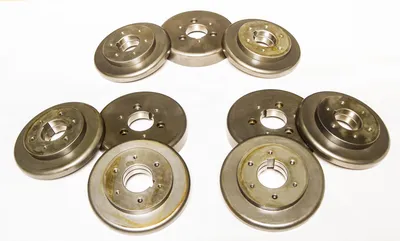

● Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
● Inline direct drive roll shaft system with motor and brake on each shaft - 3 rolls driven

All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
