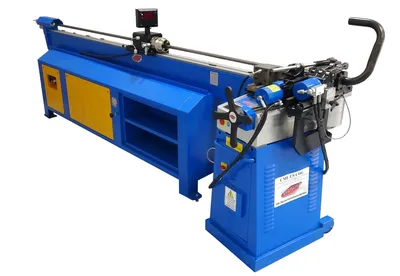

Ercolina 030 Mega Bender Mandrel System With 2-1/2" Tube Capacity

Description

220V or 480V Three Phase

Three tables available (specify when ordering):
● 5′ mandrel machine - 030T-A15/H76
● 10′ mandrel machine - 030T-A3/H76 (displayed)
● 20′ mandrel machine - 030T-A6/H76 (displayed)

Ercolina’s 030 Mega Bender with mandrel system is ideal for prototype or small production mandrel bending applications.

Ercolina’s affordable tube benders and fabricating machines are designed to reliably and accurately produce your bending applications. As a result, our machines will increase profit, as well as improve product quality and finish.

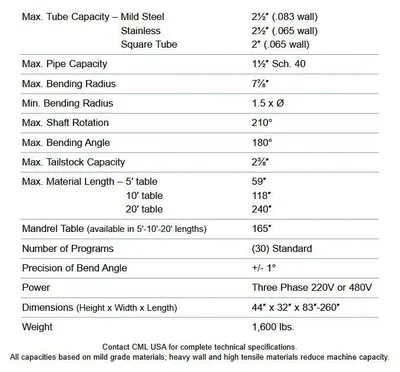

● Mild steel tube capacity 2.5″ (.083 wall)
● Stainless tube capacity 2.5″ (.065 wall)
● Square tube capacity 2″ (.065 wall)
● Pipe capacity 1.5″ Sch. 40
● Maximum bend radius 7.875″
● Bend to CLR as small as 1.5D
● Variable bending speed
● Programmable bend angle
● Ideal for bending handrail, thin wall mild steel, stainless steel, bend grade aluminum and other materials
● Programmable bend sequencing and mandrel retraction
● Independent clamp and pressure die adjustment
● Quick change tooling reduces setup time
● Tables available in 5′, 10′ or 20′ lengths; standard with pneumatic material clamping and DRO system for linear and rotational positioning
● Bending software available for part layout guideline
● Reference display of Y & B axis to assist set-up
● Y – Feeding manual with adjustable stops
● B – Feeding manual with adjustable stops
● C – NC programmable bend angle

● A15/H76 – 5′ mandrel table only
● A3/H76 – 10′ mandrel table only
● A6/H76 – 20′ mandrel table only
